All-in-One Energy Storage System

Product Title： All-in-One Energy Storage System

product details

Product Introduction

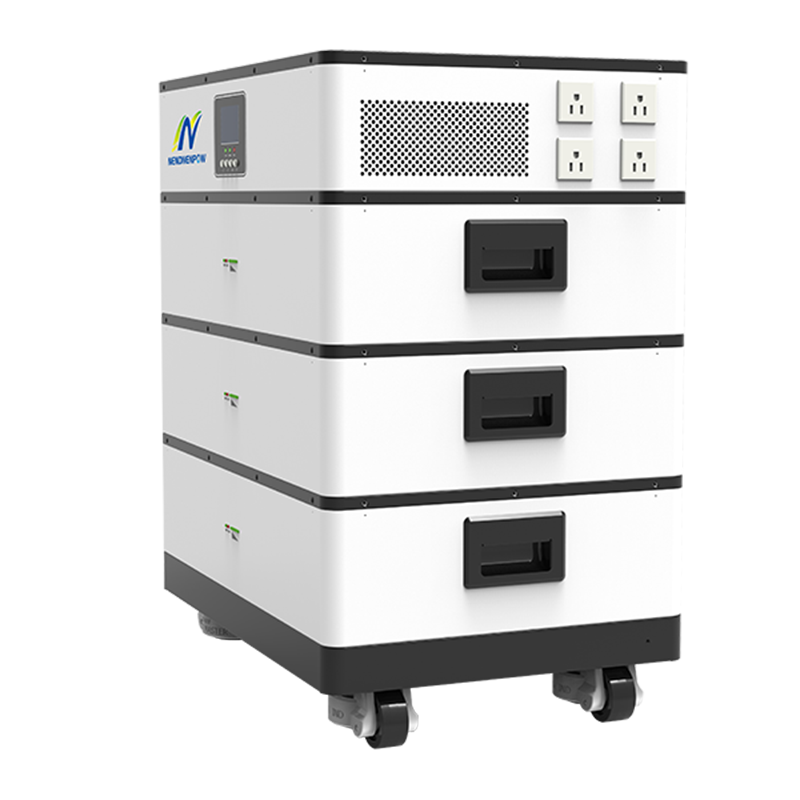

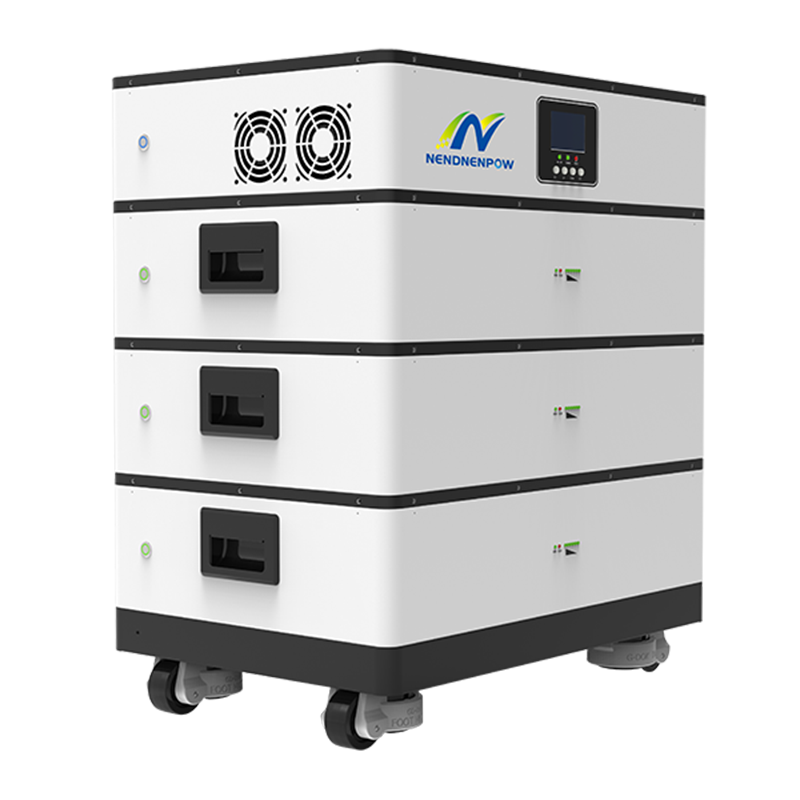

51.2V All-in-One Energy Storage System LiFePO4 battery,designed for residential energy storage,stylish design and The inverter and battery are integrated, making installation and use more convenient.

Features:

1.Support Off-grid output.

2.Large LCD screen with real-time data.

3.Plug-and-play,eliminate the clutter of wires.

4.Up to 6 batteries in parallel expand to 30.72kWh.

5.No matching and commissjoining required,easy to install.

6.Support Wifi view resl-time data through App.

Product specification:

	Model Number	48100A
Inverter Model	Rated Power	5.5KW(Pure string wave)
	Peak power	11kW(5s)
	Battery input voltage range	DC 40V-60V
	AC input voltage range	AC 170V~280V±2%/AC 90V~280V±2%(optional)
	AC Output voltage range	AC 230V±5%/AC 110V±5%
	Frequency	50HZ160HZ (self-adaption)
	Inverter efficiency	>90%
	AC charging current	60A(MAX)(optional)
	Max input power of photovoltaic	4500W
	MPPT voltage range	DC 120-450V/DC 60V-120V (optional)
	Max input voltage of photovoltaic	DC 500V/DC 145V (optional)
	Max charging current of photovoltaic	100A/(0-100A)(optional)
	Working Temperature	-10C-55℃
Battery Model	Battery Model	48100-A
	Rated voltage	51.2V
	Battery pack voltage range	43.2V-58.4V
	Total Power	5.12-25.60kWh
	Combination	1P16S-5P16S
	Insulation resistance test value	≥20MO
	Operating temperature	Charging:0~50℃,Discharging:-20~55℃
	Standard charging current	≤100A
	Standard discharge current	≤100A
Others Characteristics	Inverter size (LWH)	620425140±5mm
	Inverter weight	15Kg
	Battery size (LWH)	620425155±5mm(Single module)
	Battery weight	48Kg (Single module)
	Base size	620425120±5mm
	Base weight	10Kg
