5kWh/10kWh Wall-mounted LiFePO4 Battery

product details

Product Introduction

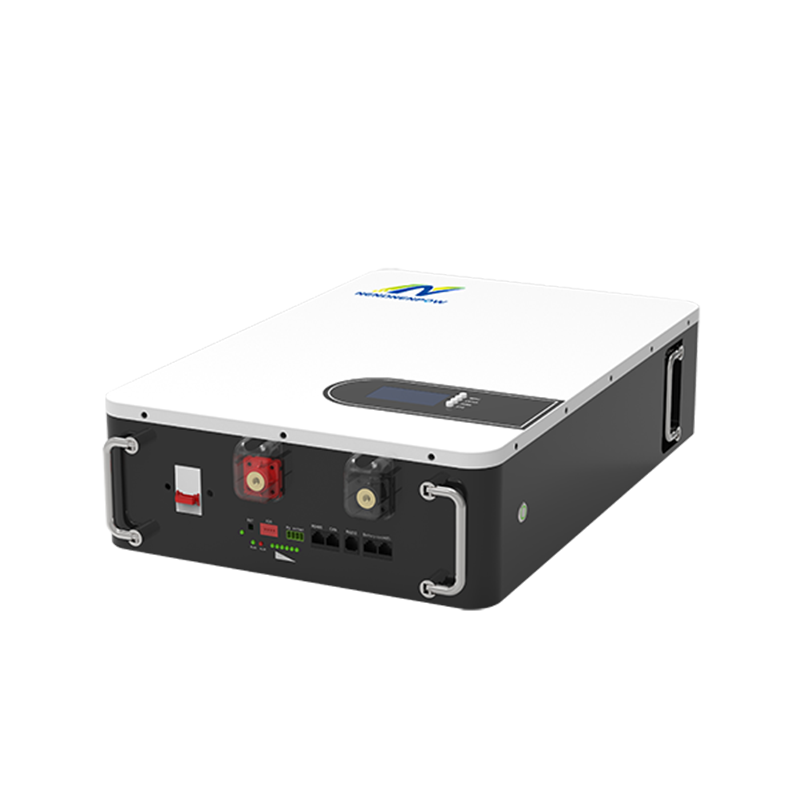

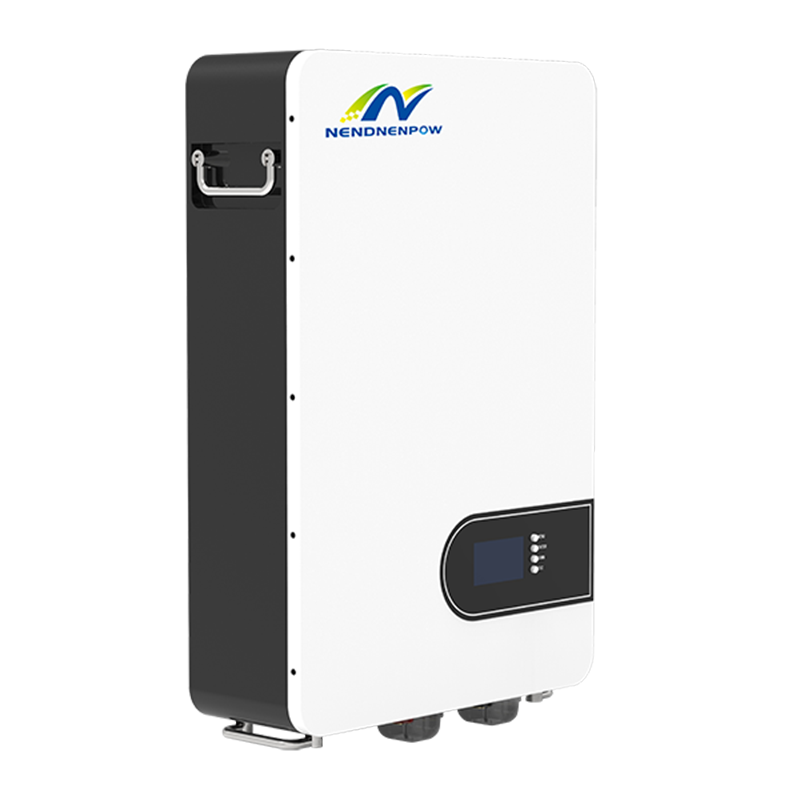

48V/51.2V Wall-mounted LiFePO4 battery,designed for residential energy storage,stylish design and supports wall-mounted installation.

1.LCD monitors the energy storage power data and operating status.

2.High-quality LiFePO4 battery, safety, deep cycle and long lifespan.

3.Metal shell, waterproof and explosion-proof.

4.External main switch to reduce product power consumption and improve safety.

5.Support a variety of communication protocols,support RS485,RS232, CAN.6.Wider temperature range:-20°C-60°C

6.BMS built inside, over-voltage, over-load, over-temperature protection, etc.

7.Can match the communication protocol of mainstream inverters on the market.

8.Compatible, can be connected to different types of loads within the voltage range.

9.Support up to 15 modules in parallel.

	Model	48100VV	48200W
Basic Characteristics	Nominal Voltage	48/51.2V	48/51.2V
	Nominal Capacity	100Ah	200Ah
	Energy	4800Wh/5120Wh	9600Wh/10240vVh
	Inner Resistance	15mΩ	15mΩ
	Cell Type	LiFePO4	LiFePO4
Charging Characteristics	Charge Voltage	54.7V(15S)/58.4V(16S)	54.7V(15S)/58.4V(16S)
	Standard Charging Current	50A	100A
	Max.Continuous Charging Current	100A	200A
Discharge Characteristics	Standard Discharge Current	50A	100A
	Continuous Discharge Current	100A	200A
	Peak Discharge Current	150A(3S)	300A(3S)
	Discharge Cut-off Voltage	42V(15S)/44.8V(16S)	42V(15S)/44.8V(16S)
Environmental Requirements	Charge Temperature Range	0-55℃	0-55℃
	Discharge Temperature Range	-10°C-60℃	-10°C-60℃
	Storage Temperature Range	-5-40℃	-5~40℃
	Storage Humidity	65±20%HR	65±20%HR
Mechanical Characteristics	Size(LxWVxH)	600x400x178mm	700x645x180mm
	Package Size (LxWxH)	760x510x410mm	840x790x400mm
	Shell Material	SPCC	SPCC
	Net weight	51.5kg	91.5kg
	Gross Weight	68.5kg	108.5kg
	Package Method	1pcs per carton	1pcs per carton
Others Characteristics	Cycle Life	6000(80%DOD,0.5C,25℃)	6000 (80%DOD, 0.5C, 25℃)
	Protection Degree	IP42	IP42
	SOC Indication	LCD Screen	LCD Screen
	Communication Protocol	RS485/CAN	RS485/CAN
	Matching Inverter	Growatt, Goodwe,Deye, Luxpower, SRNE etc.
