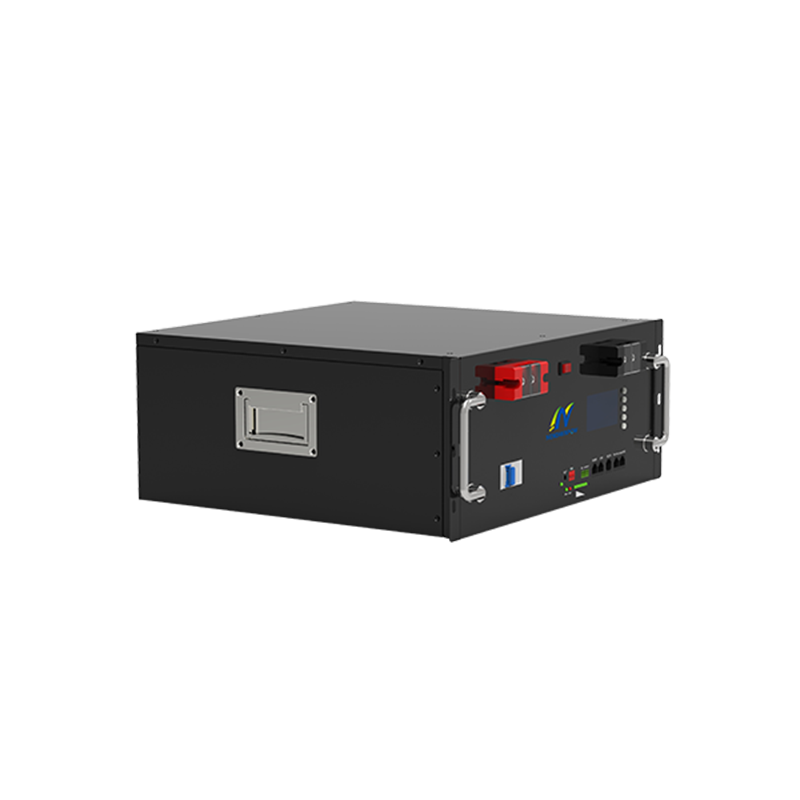

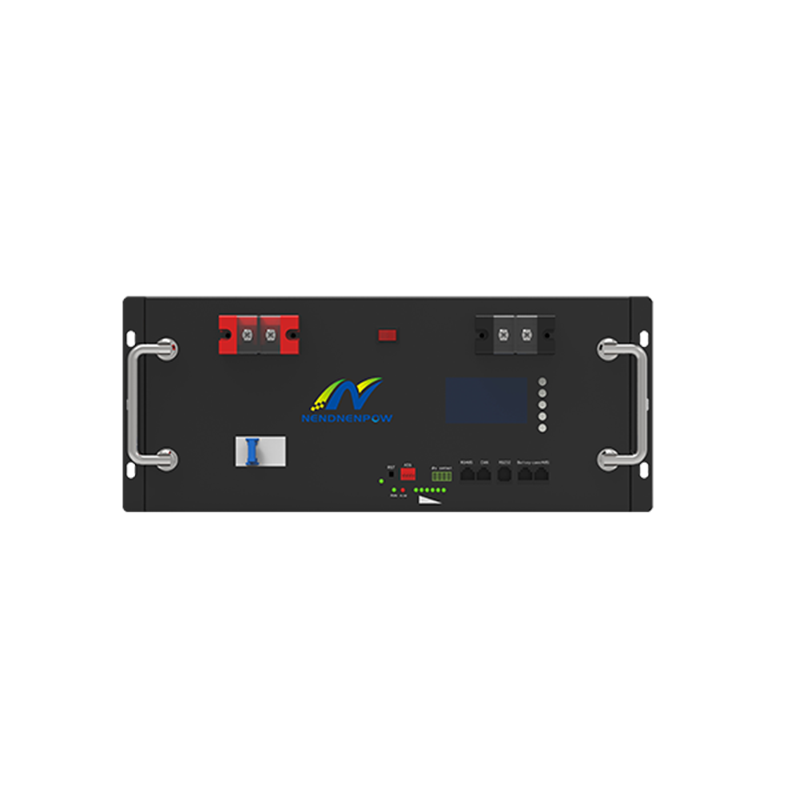

5kWh/10kWh/15kWh Rack-mounted LiFePO4 Battery

Product Title 5kWh/10kWh/15kWh Rack-mounted LiFePO4 Battery

product details

Product Introduction

48V/51.2V Rack-mounted LiFePO4 battery,high energy density,stylish appearance,easy to install and expand, widely used in telecom base stations,commercial energy storage,UPS,Residential energy storage systems.

Features:

1.In parallel to enlarge energy:Add the current limiting module, support multiple battery parallel use,expand the battery capacity,meet the high energy demand of customers.

2.Intelligent lithium battery management system:With RS485 communication,you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers' requirements.

3.Warning function:Warning functions such as overcharge,overdischarge,overcurrent,high temperature and low temperature can greatly reduce the potential safety hazard.

4.Can match the communication protocol of mainstream inverters on the market.Support upto 15 modules in parallel.

Product specification:

	Model	48100R	48200R	48280R
Basic Characteristics	Nominal Voltage	48/51.2V	48/51.2V	48/51.2V
	Nominal Capacity	100Ah	200Ah	280Ah
	Energy	4800Wh/5120Wh	9600Wh/10240Wh	13440Wh/14336Wh
	Inner Resistance	15mΩ	15mΩ	15mΩ
	Cell Type	LiFePO4	LiFePO4	LiFePO4
Charging Characteristics	Charge Voltage	54.7V(15S)/58.4V(16S)	54.7V(15S)/58.4V(16S)	54.7V(15S)/58.4V(16S)
	Standard Charging Current	50A	100A	100A
	Max.Continuous Charging Current	100A	200A	200A
Discharge Characteristics	Standard Discharge Current	50A	100A	100A
	Continuous Discharge Current	100A	200A	200A
	Peak Discharge Current	150A(3S)	300A(3S)	300A(3S)
	Discharge Cut-off Voltage	42V(15S)/44.8V(16S)	42V(15S)/44.8V(16S)	42V(15S)/44.8V(16S)
Environmental Requirements	Charge Temperature Range	0~55℃	0~55℃	0~55℃
	Discharge Temperature Range	-10℃~60℃	-10℃~60℃	-10℃~60℃
	Storage Temperature Range	-5~40°℃	-5~40℃	-5~40°℃
	Storage Humidity	65±20%HR	65±20%HR	65±20%HR
Mechanical Characteristics	Size(LxWxH)	470×500×195mm	440×590×235mm	440×760×235mm
	Package Size (LxWxH)	560×560×390mm	570×720×420mm	570×910×420mm
	Shell Material	SPCC	SPCC	SPCC
	Net weight	48kg	80kg	116kg
	Gross Weight	60kg	97kg	133kg
	Package Method	1pcs per carton	1pcs per carton	1pcs per carton
Others Characteristics	Cycle Life	6000(80%DOD,0.5C,25℃)
	Protection Degree	IP42	IP42	IP42
	SOC Indication	LED Light&LCD Screen	LED Light&LCD Screen	LED Light&LCD Screen
	Communication Protocol	RS232/RS485/CAN	RS232/RS485/CAN	RS232/RS485/CAN
	Matching Inverter	Growatt, Goodwe,Deye, Luxpower, SRNE etc.
