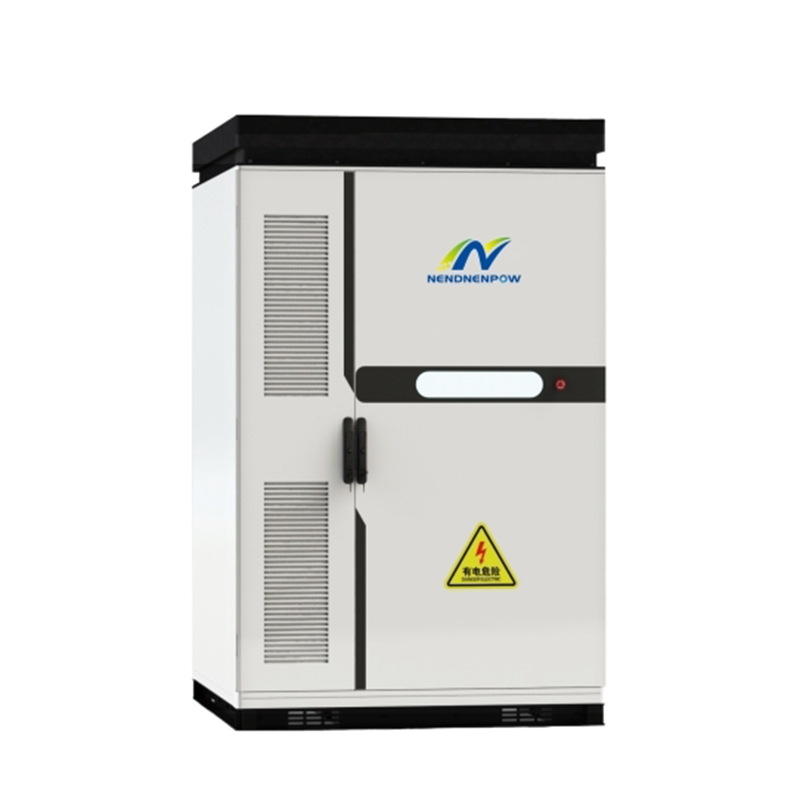

215kWh Outdoor Cabinet Energy Storage System

Using 280Ah LiFePO4 battery cells All-in-one Design Support and off grid switching.Al cloud computing data processing, intelligent control. More worry free to use.

product details

Features:

1.All-in-one Design

2.Users can easily set custom operating modes

3.Support and off grid switching

4.Support the installation and access of micro grid energy devices

5.Integrated energy management,real-time dynamic monitoring

6.Al cloud computing data processing,intelligent control

Product specification:

Model Number	215kWh
Battery rated capacity	215kWh
Battery rated voltage	768V
Battery voltage range	672V~864V
Battery type	Lithium iron phosphate battery(LFP)
Battery cell capacity	280Ah
Series of Battery	1P20S12S
Maximum charge and discharge current	140A
Photovoltaic rated capacity	100kW
Photovoltaic voltage range	200~450V
Rated AC power	100kW
Rated AC current	144A
Rated AC voltage	400V,3W+N+PE/3W+PE
Rated AC frequency	50/60Hz
THDI	<3%(Rated power)
Power Factor	-1leading to+1 lagging
THDU	<3%(Linear Load)
Degree of protection	IP54
Isolation mode	No-Isolation(Adding isolation transformer is optional)
Shutdown self-discharge	<100W(Without transformer)
Display	LCD
Relative humidity	0～95%(no condensation)
Noise	<78dB
Ambient temperature	-25℃ to +60℃(with derating at temperatures above 45℃)
Cooling mode	3000m(>3000m reduction)
Altitude	LED Light&LCD Screen LED Light&LCD Screen
Communication interface	CAN/Ethernet/485
Size (WDH)	160011002800mm
Weight (approx.)	2800Kg

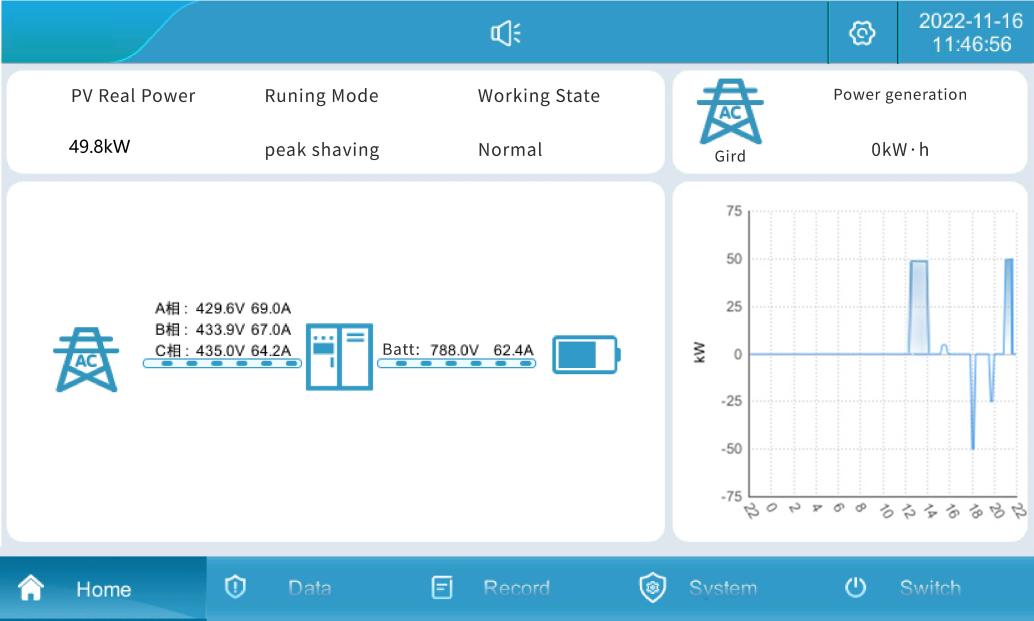

Human-machine Interface Introduction
