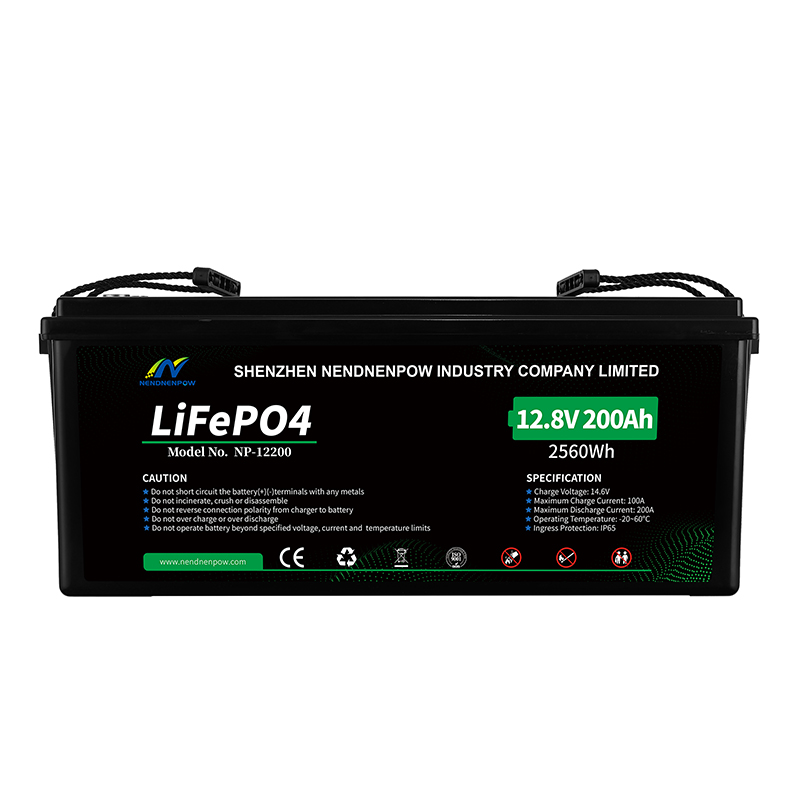

12.8V200Ah LiFePO4 BATTERY Replacement for lead acid battery

1.Using the technology of lithium iron phosphate cell.superior safety,thousands of cycles,100%DOD. under normal conditions.
2.Built-in automatic protection for over-charge, overdischarge, over current and over temperature.
3.Free of maintenance.
4.Internal cell balancing.
5.Lighter weight:About 40% ~50% of the weight of a comparable lead acid battery.Replacement for lead-acid battery.
6.Wider temperature range:-20°C-60°C

product details

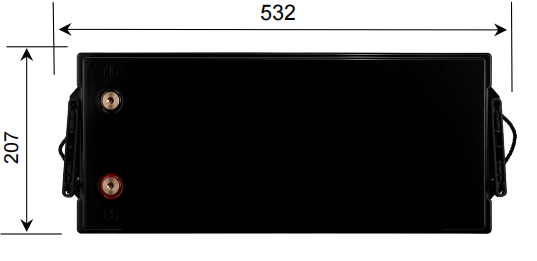

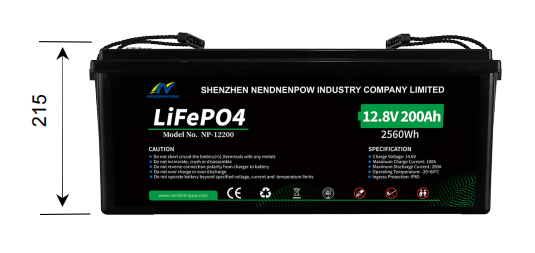

Dimensions(Unit:mm)

Features:

1.Using the technology of lithium iron phosphate cell.superior safety,thousands of cycles,100%DOD. under normal conditions.

2.Built-in automatic protection for over-charge, overdischarge, over current and over temperature.

3.Free of maintenance.

4.Internal cell balancing.

5.Lighter weight:About 40% ~50% of the weight of a comparable lead acid battery.Replacement for lead-acid battery.

6.Wider temperature range:-20°C-60°C

Product specification:

Electrical Characteristics
Nominal Voltage	12.8V
Nominal Capacity	200Ah@0.2C
Min. Capacity	200Ah@0.2C
Nominal Energy	2560Wh
Internal Resistance	≤16mΩ
Cycle Life	2000 Cycles @ 40A Charging/Discharging ,Until 70% Capacity
Self Discharge	≤3.5% per month at 25℃
Bluetooth&Heat	YES
Standard Charging &Discharge
Max.Charging Voltage	14.0-14.4V
Charging Mode	CC-CV
Charging Current	40A
Max.Charging Current	100A
Discharging Current	100A
Max. Continuous Current	200A
Max.Pulse Current	200A(<3S)
Discharging Cut-off Voltage	10.8V
Operating Condition
Charge Temperature	0℃ to 45℃(32℉to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉)@60±25% Relative Humidity
Storage Temperature	0℃ to 45℃(32℉to 113℉)@60±25% Relative Humidity
Structure
Casing	Plastic
Dimension(LWH*TH)	532207215mm
Weight	Approx.25Kgs
Terminal	M8
Water Dust Resistance	IP65
Certifications
•ICE62619(Cell) •CE(Cell) •UN38.3(Cell/Pack) •ROHS(Cell)
