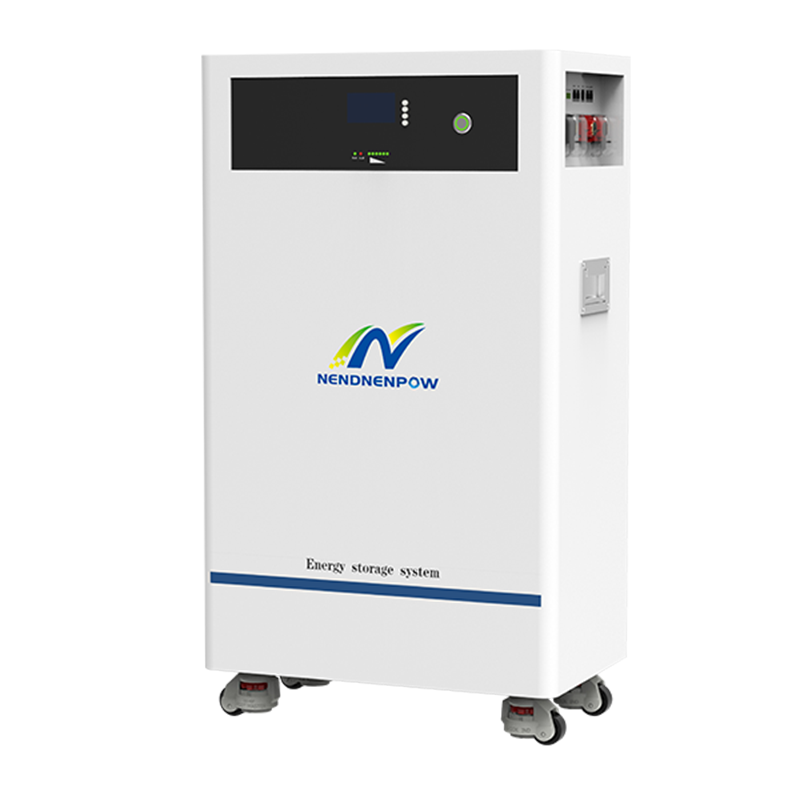

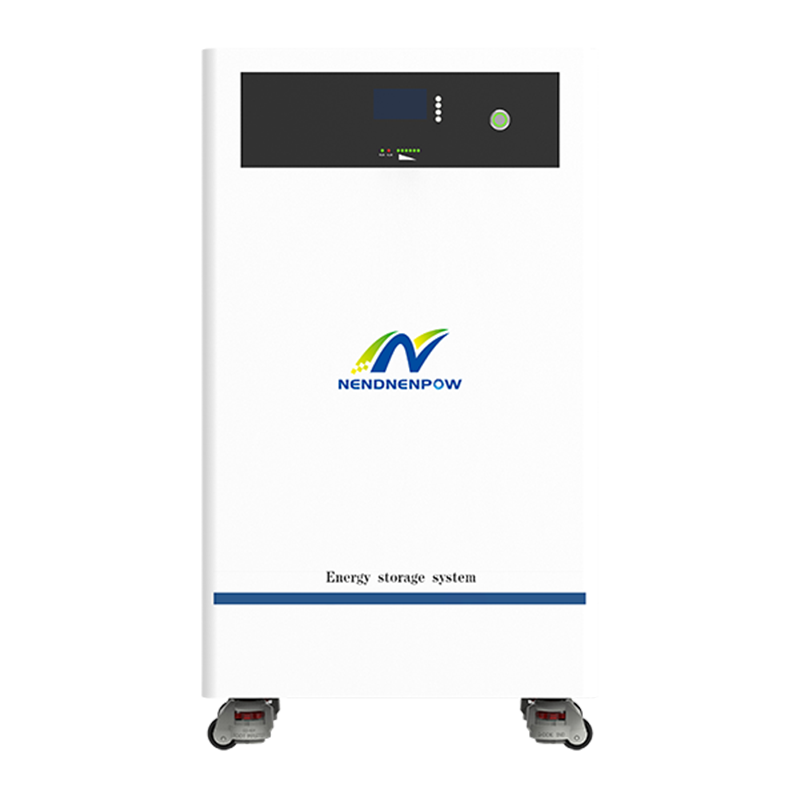

11kWh/15kWh/16kWh Floor-wheelsLiFePO4 Battery

Product Title 11kWh/15kWh/16kWh Floor-wheelsLiFePO4 Battery

product details

Product Introduction

48V/51.2V Floor-wheels LiFePO4 battery,designed for residential energy storage,stylish design.The bottom is equipped with silent wheels and brakes, making it easy to move and safer.

Features:

1.LCD monitors the energy storage power data and operating status.

2.High-quality LiFePO4 battery, safety, deep cycle and long lifespan.

3.Metal shell, waterproof and explosion-proof.

4.External main switch to reduce product power consumption and improve safety.

5.The mobile bottom wheel can meet the installation and be used indifferent places.

6.BMS built inside, over-voltage, over-load, over-temperature protection, etc.

7.Can match the communication protocol of mainstream inverters on the market.

8.Compatible, can be connected to different types of loads within the voltage range.

9.Support up to 15 modules in parallel.

10.Support a variety of communication protocols,support RS485,RS232, CAN.

Product specification:

	Model	48228F	48280F	48310F
Basic Characteristics	Nominal Voltage	48/51.2V	48/51.2V	48/51.2V
	Nominal Capacity	228Ah	280Ah	310Ah
	Energy	10944Wh/11673Wh	13440Wh/14336Wh	14880Wh/15872Wh
	Inner Resistance	15mΩ	15mΩ	15mΩ
	Cell Type	LiFePO4	LiFePO4	LiFePO4
Charging Characteristics	Charge Voltage	54.7V(15S)/58.4V(16S)	54.7V(15S)/58.4V(16S)	54.7V(15S)/58.4V(16S)
	Standard Charging Current	50A	100A	100A
	Max.Continuous Charging Current	100A	200A	200A
Discharge Characteristics	Standard Discharge Current	50A	100A	100A
	Continuous Discharge Current	100A	200A	200A
	Peak Discharge Current	150A(3S)	300A(3S)	300A(3S)
	Discharge Cut-off Voltage	42V(15S)/44.8V(16S)	42V(15S)/44.8V(16S)	42V(15S)/44.8V(16S)
Environmental Requirements	Charge Temperature Range	0~55℃	0~55℃	0~55℃
	Discharge Temperature Range	-10℃~60℃	-10℃~60℃	-10℃~60°C
	Storage Temperature Range	-5~40℃	-5~40℃	-5~40℃
	Storage Humidity	65±20%HR	65±20%HR	65±20%HR
Mechanical Characteristics	Size(LxWxH)	500×300×750mm	580×750×183mm	900×500×300mm
	Package Size (LxWxH)	750×910×400mm	750×910×400mm	1020×620×490mm
	Shell Material	SPCC	SPCC	SPCC
	Net weight	90kg	120kg	120kg
	Gross Weight	105kg	137kg	137kg
	Package Method	1pcs per carton	1pcs per carton	1pcs per carton
Others Characteristics	Cycle Life	6000(80%DOD,0.5C,25℃)
	Protection Degree	IP42	IP42	IP42
	SOC Indication	LED Light&LCD Screen	LED Light&LCD Screen	LED Light&LCD Screen
	Communication Protocol	RS232/RS485/CAN	RS232/RS485/CAN	RS232/RS485/CAN
	Matching Inverter	Growatt, Goodwe,Deye, Luxpower, SRNE etc.
